Home  > Dental X-ray System
  • ADX-10P High Frequency DC Portable Dental X-ray Unit

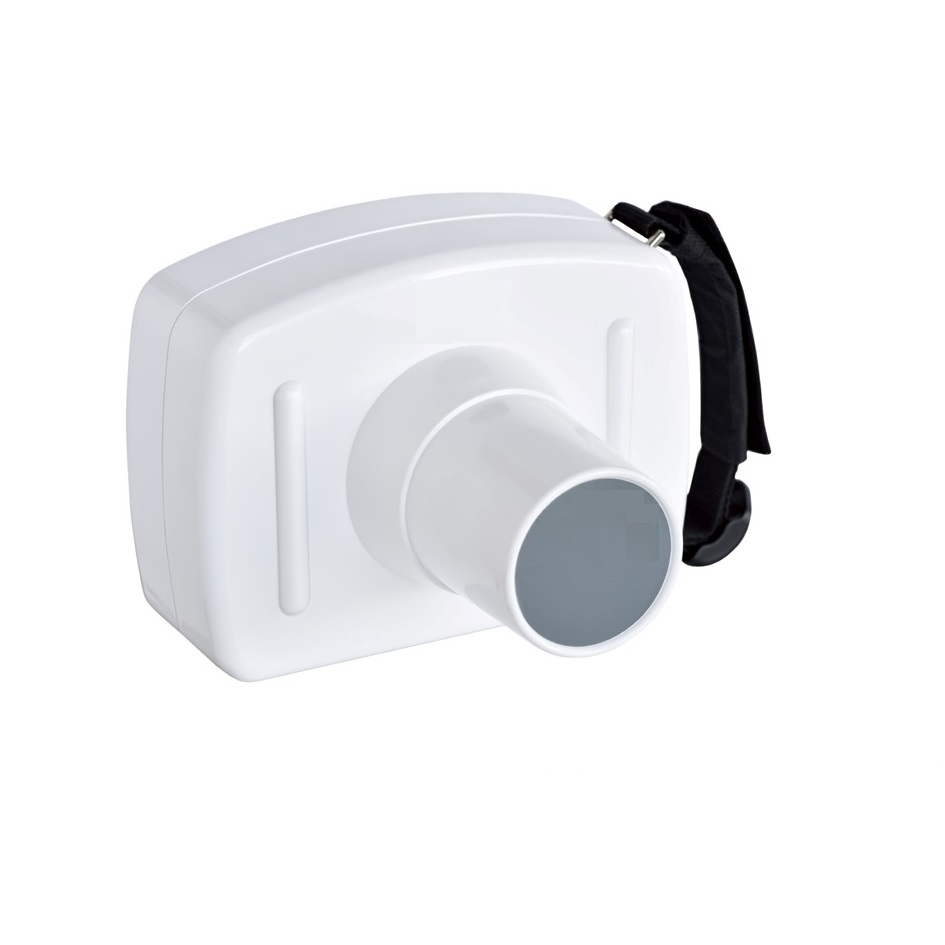

ADX-10P High Frequency DC Portable Dental X-ray Unit

  • Product description:
  • Inquiry

Product introduction

1 Characteristics and main use
This portable dental X-ray unit is high frequency machine. The body is small, light weight and nearly no radiation. It has excellent image quality, portable storage, save more space. It uses high frequency and DC international power supply. All of thecomponents installed in the central PC board concentrated. Shock, set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection. There are also manual buttons installed on the surface of shell, as well as batteries and charges. This unit mainly suitable for oral pre-treatment for learning internal organizational structure, root depth and so on, is indispensable in daily life clinic equipment, especially for dental implant surgery. It also can connect with sensor, is great convenience.

SPECIFICATIONS

Tube voltage

60KV

Tube current

1.2mA

Exposure time

0.1--2.0s

Frequency

40KHz

Rate power

60VA

Distance from skin to cone

140mm

Tube focus

0.4mm*0.4mm

Battery

DC14.8V  4400mAh

Charger input voltage

AC100V-240V±10%

Output voltage

DC16.8V

Leak radiation

1 Meters≤0.002mGy/h

Ambient temperature

5℃~40℃

Relative temperature

<75%RH

Net weight

2.6KG

Gross weight

5.0KG

Package size(mm)

280*270*250
