> Infrared Vein Finder

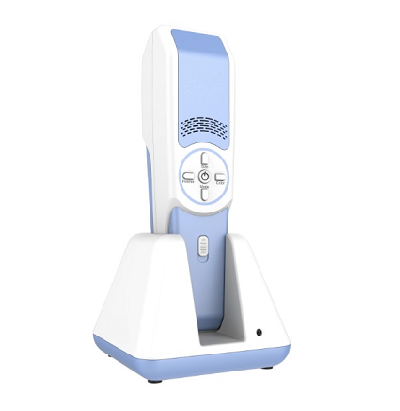

AV-400 handheld Infrared vein finder
- Light type: Near-infrared light
- Depth of Visible Vein: ≤12mm
- Operating Mode: Handheld or Suspension
- Best projection distance: 200±20mm
- Product description: handheld version of vascular imaging navigation instruments; The products adopt the design of mobile chassis so that the support structure can easily move
Product introduction
Features:
Light type: Near-infrared light
Infrared wavelengths: 850 nm
Image resolution: 720*480
Depth of Visible Vein: ≤12mm
Best projection distance: 200±20mm
Power Supply: DC 5V ≤3.5W
Weight: 450g
Dimension: 240x60x60mm （LxWxH）
Battery volume: 4400mAH
Battery working time: ≈ 5 hoursension
Charging time: ≈ 3 hours
Battery detachable: Yes
Operating Mode: Handheld or Suspension
Package information: 52X30X23cm, 2.3kg
Product Description：
AV400 is the handheld version of vascular imaging navigation instruments; The products adopt the design of mobile chassis so that the support structure can easily move; The products carry large capaciy of Lithium battery compartment to achieve long life. AV400 type of products are designed specially aiming to health care staff having mobile requirements and the mobile chassis of the bracket is stable and firm; Also accessories, such as personalized pushing hands and storage basket, etc. are equipped; Hover bracket for universal position and multi-joint adjustable mechanisms are equipped with features, for example high flexibility and easy to operate and so on. We suggest the products to be used in medical environments such as wards and emergency rooms, etc. with mobile requirements.
AV400 handheld model vein illuminator includes main unit, battery (1pcs), charging base. Fixed support or Mobile support is optional.

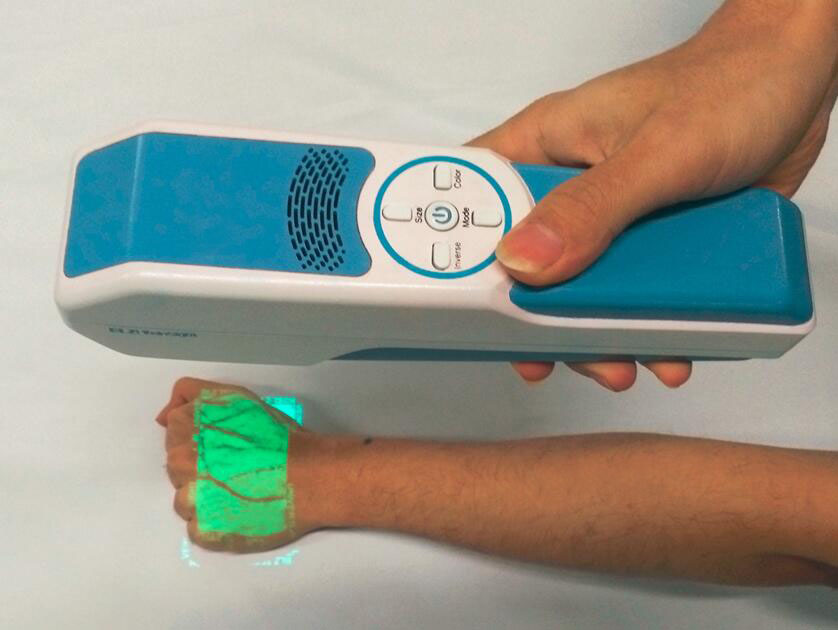

Visualization mode
Color: 5 colors adjustable, for different patient skin tone and personal preference
Inverse: Allows clinicians to switch entre highlight the veins and highlight the surround tissue, for reduce the interference of skin tone, density of hair follicles and room brightness.
Brightness: 3 degree brightness adjustable, allow clinicians customizing the image brightness base on the environment light.
Resize: 3 kinds of image sizes, for pediatric patients or when need to focus on only one vessel.
Enhanced Mode: Helpful for find the small or deep veins.
