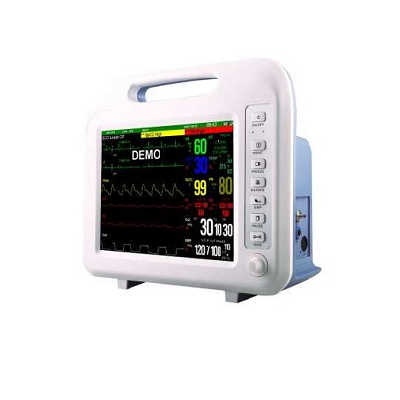

ANP-9000E 12.1inch 6 Multi-parameters Patient monitor

Function:

1. Display: 12.1” color TFT screen, high resolution: 800×600 dpi;

2. 3/6 Parameters: Standard – 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR; Optional – 3/12-lead ECG, single/double IBP, double Temp., Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO;

3. Patient Range: Suitable for Adult, Pediatric, Neonate;

4. Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic, 7 full ECG waveforms;

5. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);

6. Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP ,records and 200 alarm event;

7. Battery: Built-in 2 hours rechargeable lithium battery, and battery volume ,display. 4 hours rechargeable lithium battery (optional);

8. Network: TCP/IP networking platform, connect with central monitoring system. Wifi central monitoring system (optional).

Feature:

1. Advance patient Manage: gender, full name, ID no., room no., bed no., weight,

height, blood type, paced or not, remakes;

2. Multi-parameter board: Separated parameter board, main board, ECG board,

SPO2 board, and NIBP board are independent;

3. Interface: Color, layout of each parameters can be set up by user need,

bed to bed view display(optional);

4. Fanless: Use special fanless cooling technology in the device to provide users

quiet environment;

5. Standby: Unique standby mode for energy saving and suspend monitoring;

6. Time delay: Time delay switch-off function to save data when monitor turn off

suddenly;

7. Easy software update: Users can update monitor software by themselves;

8. Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis;

SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic

Calculations;

9. Storage: external SD card slot enables memory extension(optional);

10. Data transfer: USB port to allow to transfer patient data to a PC (optional);

11. Special SINNOR F-6 Spo2 technology: which is as correct as Nellcor spo2 but

cheaper than it(optional);

12. Resistance to interference : Efficient resistance to interference of defibrillator and HF knife;

13. Other optional: Touch Screen, Printer, Wall amount, VGA connect

Optional: Touch Screen, Printer, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2,

Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO,

ETCO2, Sun Tech NIBP, Wall mount, VGA, Wifi

Performance Specification

Display: 12.1”color TFT

Rolling and refreshing waveform display

Resolution: 800×600

Multi display selectable including:

Standard display

Large-font display

Trend coexist display

OxyCRG dynamic view display

7 full ECG waveforms display

Bed-to-bed view display(optional)

Trace: 9 waveforms (7 ECG, 1 SPO2 and 1 RESP)

Sweep speed:6.25mm/s, 12.5mm/s,25mm/s,50mm/s

Indicator: Power/battery indicator light

QRS beep and alarm sound

Battery:Rechargeable lithium battery, 12v/4AH

Max.24 hour for charging, 2 hours for continue working

Trend: Parameter graphic and tabular trends:

5s/piece, 8 hours;

1min/piece,168 hours(24hour×7days)

5min/piece, 1000 hours.

Storage: NIBP: 1000 groups

Alarm: 200 groups

SD card external storage (optional)

Alarm:User-adjustable High, Medium and Low limits 3-level

Audible and visual alarm

Networking: Connected to central monitoring system

TCP/IP netting platform

Wifi connector (optional)

Recorder: Build-in, thermal array

Plethysmogram caveform:2 /3 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type :Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record

Standard parameter

ECG

Lead mode: 5 –lead(R, L, F, N, C) (3/12 lead ECG for optional)

Lead selection: I, II, III, avR, avL, avF, V

Waveform: 3 and 7 channel selectable

Gain selection: 0.5mm/mv,1mm/mv,2mm/mv

Sweep speed: 6.25mm/s;12.5mm/s;25mm/s;50mm/s

Heart rate range: Adult: 15~300bpm;

Neonate/pediatric: 15~350bpm

Accuracy: +1bpm or +1%, which is greater

Resolution: 1bpm

Filter: surgery mode: 1~20Hz

Monitor model: 0.5~40Hz

Diagnostic mode: 0.05~130Hz

Scaling signal: 1mv, +3%

Protection: withstand 4000VAC/50 voltage isolation against electrosurgical

interference and defibrillation

Alarm range: 15~350bpm

S-T segment detection:

Measurement range: 2.0mV~+2.0mV

Alarm Range: -2.0mV~ +2.0mV

Accuracy: -0.8mV ~+0.8Mv

Error: +0.02Mv

Arrhythmia analysis: YES

SPO2

Measurement range: 0~100%

Wave speed: 12.5mm/s;25mm/s

Resolution: 1%

Accuracy: +2% (70-100%); 0-69% unspecified

Alarm range 0~100%

Lower perfusion situation

Pulse Rate(PR)

Range: 20~300bpm

Resolution: 1bpm

Error: +1bpm or +2%, whichever is greater

NIBP

Method: Digital Automatic oscillometric

Operation mode : Manual/Automatic

Auto measurement time: Adjustable (1~720min)

(1,2,3,4,5,10,15,30,60,90,120,240,480,720min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement Range:

Range of Systolic pressure: Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 40~135mmHg

Range of mean pressure: Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~110mmHg

Range of diastolic pressure: Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate: 10~100mmHg

Over-pressure protection: Double safety protection

Resolution: 1 mmHg

Alarm: Systolic, Diastolic, and Mean

RESPIRATION

Method: RA-LL impedance

Measurement range: Adult: 7~120rpm;

Neonate/Pediatric: 7~150rpm

Apnea alarm: YES, 10~40s

Resolution: 1rpm

Accuracy: +2rpm

TEMPERATURE

Compatible probe: YSI or CYF

Measurement range: 5~50℃

Resolution: 0.1℃

Accuracy: +0.1℃

Refreshing time: about 1

Average measuring time: <10s

Others

Safety:

Safety level: Class I, type CF

Dimension and Weight

Dimension: 28*42*48cm

G.W: <6.5KS

Operation Environment

Temperature: Working 0~+40℃

Transportation and storage –20~+60℃

Humidity: working≤85%

Transportation and storage≤93%

Power: AC 100-240, 50/60Hz

Accessories supplies

1. 5 lead ECG cable 1set

2. Adult Spo2 probe 1set

3. Adult NIBP Cuff and extension tube 1set

4. Temp probe 1set

5. Ground connecting liner 1set

6. ECG Chest electrode (10pcs/pack) 1pack

7.2200mA lithium battery 1PCS
