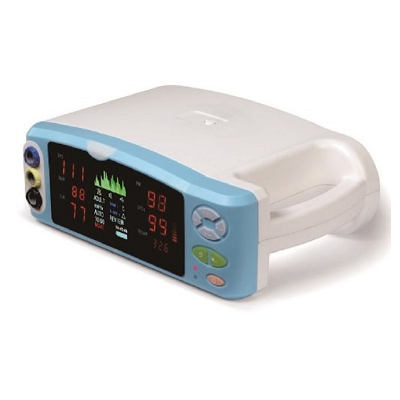

ANP-III Vital Signs Patient Monitor

Four parameters:NIBP,SpO2,Pulse Rate, Temperature
SpO2 waveform, PR strength display.
2.8 inch color LCD with real time display
Storage/Review trend data up to 3888 groups, data save time interval settable.
Product description: 1.Audio and visual alarm when parameters exceeded and sensor-off 2.Built-in rechargeable Li-ion battery, up to 5 hour running time 3.Automaic shutdown for power saving, shutdown time interval settab
Inquiry

Product introduction

Specification:
1.Four parameters:NIBP,SpO2,Pulse Rate, Temperature

2.SpO2 waveform, PR strength display.

3.2.8 inch color LCD with real time display

4.Storage/Review trend data up to 3888 groups, data save time interval settable.

5.Audio and visual alarm when parameters exceeded and sensor-off

6.Built-in rechargeable Li-ion battery, up to 5 hour running time

7.Automaic shutdown for power saving, shutdown time interval settable.

8.Via USB to connect with the computer, unique software for telempnitoring by transmitting data synchronously via internet.

9. Battwey capacity indicatior and prompt when battery low.

1.NIBP

Patient: Adult and Pediatric

Measurement method: Oscillometric

Measurement range: Adult: 30mmHG-255mmHG, Pediatric: 30mmHG-160mmHG

Measurement unit: mmHg/kPa selectable

Measurement mode: Manual, Auto, STAT

Measurement Type: SYS, DIA, MAP

Measurement interval in AUTO mode: 1, 2, 3, 5,10, 15, 20, 30, 45, 60 (Min)

Measurement period in STAT mode:5 Min

Resolution:1mmHg

Over-pressure protection: Adult: 300mmHg, Pediatric:220mmHg

Oxygen Saturation(SpO2)

Measurement range:0%-100%

Accuracy:±2%（90%-100%），±3%（70%-89%）

＜70% unspecified

Resolution:1%

Pulse Rate

Measurement range:30bpm-250bpm

Accuracy: ±1bpm

Resolution:1bpm

Temp

Channal:1

Input: Body surface thermal-sensitive resistor

temperature sensor

Measurement range: 0℃-50℃

Accuracy :±0.2℃

Resolution:0.1℃

Dimension: 280W*190H*100D

Net weight: 1000g

Alarm

Sensors off alarm and alarm limit exceeded alarm

Mode: the paramenter's measurement flashes on the screen, the speaker sounds the alarm and LED flashes on the monitor.

Setup: User-adjustable high and Low limits.

Storage and Review

Trend data up to 3888 groups , data save time interval settable.

Display Mode

Type:240*320 dot matrix color TFT LCD screen and LED screen

LCD Display area:44mm*59mm

LED Display area:167mm*79mm

Operation Environment

Temperature:

Working: 0℃-45℃

Transport and storage:-20℃-60℃

Humidity:

Working:15%-95%(non-condensing)

Transport and storage:10%-95% (non-condensing)

Altitude:

Working: 86kPa-106kPa

Transport and storage:50kPa-106kPa

Power Requirements

AC power adapter

Input: AC100-240V, 50/60Hz, 0.7A

Output:5v, 2.5A

Internal battery

Type:2.8A built-in rechargeable Li-ion battery

Run Time: 5hurs of stand -by time with a full battery(environment temperature is 25℃)

Recharge time:8 hours
