> Patient Monitor

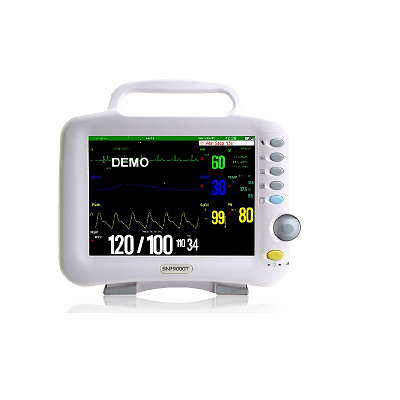

ANP-9000T Multi-Parameter Patient Monitor

10.4” color TFT display, high resolution: 800×600dpi;
Full Separated para boards: Main board, ECG board, NIBPboard, SpO2 board, can guarantee the acccuracy and save after sell service;
Can do with SpO2, ECG, NIBP, Temp, HR, PR, AG, IBP, EtCO2, N2O. with our Strong R &D team.
Can work in ICU, OR, ER.
Product description:
Inquiry

Product introduction

Features &Benefits:
1.10.4” color TFT display, high resolution: 800×600dpi;
2.Full Separated para boards: Main board, ECG board, NIBPboard, SpO2 board, can guarantee the acccuracy and save after sell service;
3.Full touch-screen enables intuitive operation by clicking one the specific parameters or the waveform in real time, standard configuration includes the navigation knob;
4.Real time S-T segment analysis, and ARR analysis;
5.SpO2 Pitch Tone Variation and Drug Dose Calculation;
6.Parameter waveform and characters color selectable
7.Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic
8.Standby mode for Energy saving and suspend monitoring;
9.7-lead ECG waveforms display in phase;
10.Capture dynamic waveforms;
11.Built-in rechargeable lithium battery, and battery volume checking
12.AC power checking
13.Efficient resistance to interference of defibrillator and HF knife;
14.SINNOR F-6 SpO2 technology, VS NELLCOR accuracy;
15.Networking capacity and TCP/IP networking platform enable abundant future upgrade
16.Time delay switch-off function keep the monitor data restart monitor;
17.Complete and flexible mounting solution for transportation and in-patient monitoring
18.Can use for Adult, neonatal, vet.
19.Can do with SpO2, ECG, NIBP, Temp, HR, PR, AG, IBP, EtCO2, N2O. with our Strong R &D team
20.SpO2 can work well In the condition of the low perfution of the patient
21.Can work in ICU, OR, ER.
22.Permanent suspension of the Alarm with one button, Standard parameters: 5-lead ECG, SpO2,NIBP, TEMP,RESP,PR,HR.

Optional: Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2,
Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, FHR, FM, TOCO

Performance Specifications

Display: 10.4”color TFT

Rolling and refreshing waveform display

Resolution: 800×600

Multi display selectable including:

Large-font display

Trend coexist display

OxyCRG dynamic view display.

Bed-to-bed view display

Trace: 9 waveforms(7 ECG, 1 SPO2 and 1 RESP)

Sweep speed:12.5mm/s,25mm/s,50mm/s

Indicator: Power/battery indicator light

QRS beep and alarm sound

Battery: Rechargeable lead acid cell, 12v/4AH

Max.24 hour for charging, 4 hours for continue working

Trend: Parameter graphic and tabular trends:

5s/piece,8 hours;

1min/piece,168 hours(24hour×7days)

5min/piece,1000 hours.

Storage: NIBP: 1000 groups

Alarm: 200 groups

Full disclosure waveforms: 3600S

SD card external storage

Alarm: User-adjustable High, Medium and Low limits 3-level

Audible and visual alarm

Networking: Connected to central monitoring system

TCP/IP netting platform

Recorder: Build-in, thermal array

Plethysmogram caveform:2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type: Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record

Standard parameter:

ECG:

Lead mode: 5 –lead(R,L,F,N,C)

Lead selection : I,II,III,avR,avL,avF,V

Waveform: 3 and 7 channel selectable

Gain selection: 0.5mm/mv,1mm/mv,2mm/mv

Sweep speed: 6.25mm/s;12.5mm/s;25mm/s;50mm/s

Heart rate range: Adult: 15~300bpm;

Neonate/pediatric:15~350bpm

Accuracy: +1bpm or +1%,whichecer is greater

Resolution: 1bpm

Filter: surgery mode:1~20Hz

monitor model:0.5~40Hz

Diagnostic mode:0.05~130Hz

Scaling signal: 1mv,+3%

Protection: withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation

Alarm range: 15~350bpm

S-T segment detecton:

Measurement range: 2.0mV~+2.0mV

Alarm Range: -2.0mV~ +2.0mV

Accuracy: -0.8mV ~+0.8Mv

Error: +0.02Mv

Arrhythmia analysis: YES

SPO2

Measurement range: 0~100%

Resolution: 1%

Accuracy: +2%(70-100%);0-69% unspecified

Alarm range 0~100%

Pluse Rate:

range: 20~300bpm

Resolution: 1bpm

Error: +1bpm or +2%,whichever is greater

NIBP

Method: Digital Automatic oscillometric

Operation mode : Manual/Automatic/continuous

Auto measurement time: Adjustable(1~480min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement tange:

Range of Systolic pressure: Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 40~135mmHg

Range of mean pressure: Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~110mmHg

Range of diastolic pressure: Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate :10~100mmHg

Over-pressure protection: Double safety protection

Resolution: 1 mmHg

Alarm: Systolic.Diastolic,Mean

RESPIRATION

Method: Thoracic impedance

Measurement range: Adult:7~120rpm;

Neonate/Pediatric:7~150rpm

Apnea alarm: YES,10~40s

Resolution: 1rpm

Accuracy: +2rpm

TEMPERATURE

Compatible probe: YSI or CYF

Measurement range: 5~50℃

Resolution : 0.1℃

Accuracy: +0.1℃

Refreshing time: about 1

Average measuring time: <10s

FHR

Transducer: Multi-crystal, Pulsed Doppler

Measurement range: 50~210 BPM

Working frequency: 1 MHz

Strength: <5mW/cm2

Signal processing:

special DSP system and modern recognization.

Resolution: 1BPM

Accuracy: ±1BPM

Alarm Range: High: 160,170,180,190 BPM,

Low: 100,110,120 BPM

FM
Manual button marking,
automatic FM identifying function

TOCO Measuring
Transducer:  External pressure transducer
Measurement range:  0~100 units
Resolution:  1rpm
Accuracy:  ±2 rpm

IBP
Channel: 2 channels
Range: －50-300mmHg
Resolution: 1mmHg
Accuracy: ±4mmHg(±4%)
Unit: mmHg, Kpa
Converter Sensitivity: 5mV/V

Hg
Transducer sites: ART/PA/CVP/LAP/RAP/ICP

EtCO2( Sidertream CO2)
Measurement range:   0~99mmHg
Accuracy:   +2mmHg (0~40mmHg)
Sampling Range:   100ml/min
Sampling rate accuracy:   15%
Respiration rate:   0~120rmp
Respiration accuracy:  +2rmp (0~70rmp)
+5rmp (>70rmp)
Respiration time:   <240msec (10% to 90%)
Delay time:  <2s

EtCO2 (mainstreaam CO2)
Method:   Infrared Spectrum
Range:   0.0-10% (0~76%)
Resolution:   1mmHg (0.1%)
Accuracy:   ＜5%(±4.0 mmHg)
Or＜10%(of Readings)

Recorder:
Build-in, thermal array
Plethysmogram caveform:2 channels
Record mode: manual, on alarm, time-defined
Recording width: 50mm
Printing speed: 50mm/s
Recording type:  Frozen waveform record
NIBP recall record
Trend table record
Alarm record
Fixed -time record

Miscellaneous

Satety:
Safety level: Class I, type CF

Dimendion and Weight
Dimendion:      28*42*48cm
G.Weight:        <6.5KS

Operation Environment
Temperature:    Working 0~+40℃
Transportation and storage –20~+60℃
Humidity:       working≤85%
Transportation and storage≤93%
Power:          AC 100-240,50/60Hz
Patient range:    Neonate,pediatric,and adult patients

Accessories supplies
(1) 5 lead ECG cable
(2) 1 spo2 probes
(3) 1 NIBP prbe
(4) 1 temp probe
(5)1 ground connecting liner
(6) Chest electrode (10pcs/SET)
