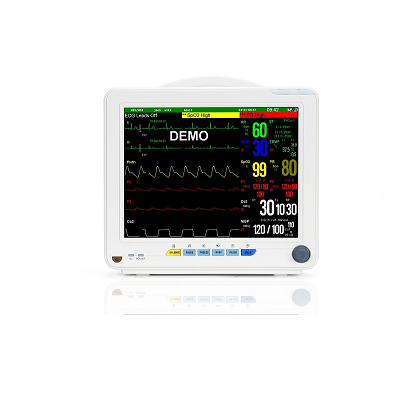

ANP-9000A 12.1inch 6 Multi-parameters Patient monitor

Function:

1. Display: 12.1” color TFT screen, high resolution: 800×600 dpi;

2. 6 Parameters: Standard – 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR; Optional – 3/12-lead ECG, single/double IBP, double Temp.,

Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO;

3. Patient Range: Suitable for Adult, Pediatric, Neonate;

4. Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic, 7 full ECG waveforms;

5. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);

6. Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP ,records and 200 alarm event;

7. Battery: Built-in 2 hours rechargeable lithium battery, and battery volume. display. 4 hours rechargeable lithium battery (optional);

8. Network: TCP/IP networking platform, connect with central monitoring system. Wifi central monitoring system (optional).

Feature:

1. Advance patient Manage: gender, full name, ID no., room no., bed no., weight, height, blood type, paced or not, remakes;

2. Multi-parameter board: Separated parameter board, main board, ECG board, SPO2 board, and NIBP board are independent;

3. Interface: Color, layout of each parameters can be set up by user need, bed to bed view display(optional);

4. Fanless: Use special fanless cooling technology in the device to provide users , quiet environment;

5. Standby: Unique standby mode for energy saving and suspend monitoring;

6. Time delay: Time delay switch-off function to save data when monitor turn off suddenly;

9. Easy software update: Users can update monitor software by themselves;

10. Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis; SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations;

11. Storage: external SD card slot enables memory extension(optional);

12. Data transfer: USB port to allow to transfer patient data to a PC (optional);

13. Special SINNOR F-6 Spo2 technology: which is as correct as Nellcor spo2 but cheaper than it(optional);

14. Resistance to interference : Efficient resistance to interference of defibrillator and HF knife;

15. Other optional: Touch Screen, Printer, Wall amount, VGA connect ,

Optional: Touch Screen, Printer, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, ETCO2, Sun Tech NIBP, Wall mount, VGA, Wifi

Others

Safety:

Safety level: Class I, type CF

Dimension and Weight

Dimension: 28*42*48cm

G.W: <6.5KS

Operation Environment

Temperature: Working 0~+40℃

Transportation and storage –20~+60℃

Humidity: working≤85%

Transportation and storage≤93%

Power: AC 100-240, 50/60Hz

Accessories supplies

1. 5 lead ECG cable 1set

2. Adult Spo2 probe 1set

3. Adult NIBP Cuff and extension tube 1set

4. Temp probe 1set

5. Ground connecting liner 1set

6. ECG Chest electrode (10pcs/pack) 1pack

7.2200mA lithium battery 1PCS
