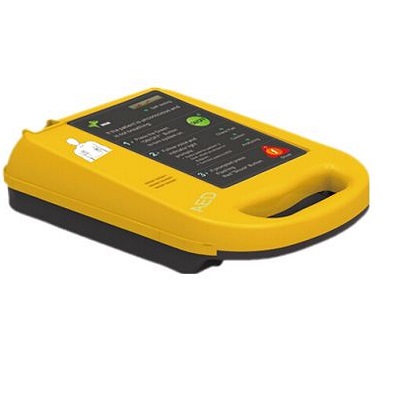

> Defibrillator

Specifications：

Waveform: Biphasic
1. Three-step defibrillation process

2. Two-button operation

3. Extensive voice and visual prompts for the operator

4. Biphasic energy output

5. Lock-out protection to prevent inadvertent defibrillation

6. Continuous event recording for reporting each use to a printer or computer

7. Weekly self-test to ensure readiness

Defibrillator
Output	Biphasic Truncated Exponential
Energy Sequence	150, 150, 200J
Charge Time	8 sec. to 150J; 10 sec. to 200J (New Battery)
Analysis Time	9 sec.
The maximum time from the initiation of rhythm analysis to readiness for discharge with a new battery	Less than 30 seconds
The maximum time from the initiation of rhythm analysis to readiness for discharge after 6 shocks	Less than 35 seconds
The maximum time from initially switching power on to readiness for discharge	Less than 25 seconds
Audible Prompts	22 audible prompts
Visual Prompts	LED prompts
Controls	Two buttons-ON/Off, Shock
Output Energy Accuracy	±15% into any impedance from 25 to 175Ω
The Maximum Voltage	1200±50V
Output disabled when the patient impedance is outside limits	20Ωto 200Ω

Physical
Dimensions	30321689mm
Weight	2.0kg
Operating Temperature	0°C to 40°C
Operating Humidity	Relative humidity between 30% and 95% (non-condensing
Storage Temperature (without battery)	-20°C to 55°C
Storage Humidity (without battery)	Up to 95% (non-condensing)
