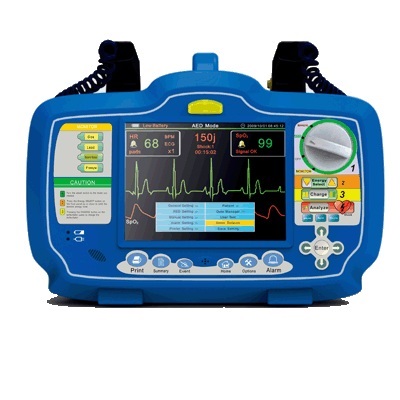

AND-7000 Defibrillator Monitor(AED and Manual)

Specifications：

Display
Screen Type: High-resolution display
Screen Size: 7 inches(1 7.7 cm) diagonally
Sweep Speed: 25mm/sec
Information: Heart Rate, Lead/Pads, Alarm On/Off, Sp02, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy

Defibrillator
Waveform: Biphasic
Energy Display: Monitor display indicates both selected and delivered energy
Charge Prompt Type: Voice and visual prompts
Electrode Impedance Measurement Range: 0-250 0hms

AED Mode
AED Function: Auto analyze and charge x3 with programmable auto energy level selection, screen prompts, and voice prompts
Shockable Rhythms: Ventricular fibrillation, Ventricular tachycardia, QRS complex wave duration
Charge Control:  Control on device front panel, press key on paddle

Manual Mode
Energy Selection: Selectable at 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules
Synchronized Mode: Synchronizes defibrillator pulse to patient's R-wave. "SYNC" message displayed on monitor

ECG Monitoring
Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles
Lead Selection :  Displayed on monitor, paddles,  l,  lI,  lIl, AVR, AVL, AVF, V
ECG Size: 0.25, 0.5, 1 , 1 .5, 2, 4 cm/mV display on monitor.
Heart Rate: 20-300BPM
Heart Rate Alarm: On/Off displayed on monitor, user-selectable
Smart Alarms: Beeper/Voice prompts indicate shockable rhythm

SpO2 Module
Measurement Range: 30-100% ,  + 2% between 80%-90%, others  + 5%
Alarm Range: User set high limit and low limit
Alarm Accuracy: + 10% within setting values
Alarm Time Accuracy: Less than 12 sec

Recorder
Paper: 50mm thermal
Speed: 12.5mm/sec, 25mm/sec, 50mm/sec. User-selectable 6-second delay
Printing Method: High-resolution, thermal array print head
Print-out Modes: Manual or automatic, user-configurable
On/Off Control: Front panel and paddle
Automatic Function: 9-second recording initiated by alarm activation or defibrillator charge or defibrillator discharge

Battary
Type: Rechargeable, Ni-MH battery, 12V
Operating Time: For a new, fully charged battery 60 defibrillator discharges at maximum energy, or 3 hours minimum of continuous ECG monitoring. Additional parameters will effect operating time with different functions.
