> Infusion Pump

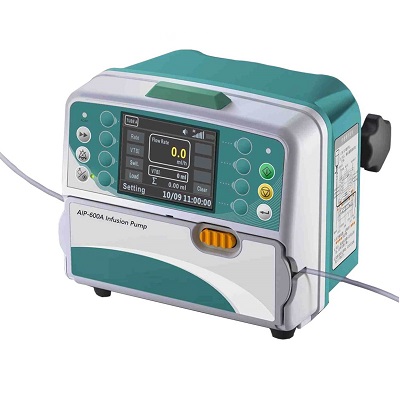

AIP-600A Infuson Pump
- Rate mode,drip mode
- Support a wide variety brands of infusion set
- Infusion accuracy ±5%
- multi Visual and audible alarms system
- Product description: Rate mode,drip mode without drug library Support a wide variety brands of infusion set Infusion accuracy ±5% Flow rate range 0.1-1200ml/h Bolus rate 300-1200ml/h KVO rate 1-5ml/h 0 history
Product introduction
Feature & functions:
• Compact and light weight design
• Top indicator light indicating infusion status
• Load directly last infusion rate and volume limit
• Adjustable buzzer volume
• Three adjustable occlusion pressure settings
• Free flow protection
• Electric infusion set • Removable pump body for easy cleaning
• Light weight, portable infusion set
• 90° rotation pole clamp • Volumetric control
• High-quality with cheap price
Characteristics:
1.Support a wide variety brands of infusion set including major manufacturers & selected local brands, Compatible any brand with high accuracy.
2. Visual and audible alarms: Door open, Air-In Line, Occlusion, Infusion completion, infusion near over, Start reminder function, Low Battery, Battery depleted, malfunction etc.
3. Three adjustable occlusion pressure settings: low, middle and high. 4. Two working modes: Rate control and Drip control mode、
5. The new air bubble detection system. Ultrasound sensor detection with four levels of air in line alarm adjustable.
6.2000 medical history records, can scan in infusion set or computer.
7. Rechargeable lithium polymer battery life in high capacity.
8. KVO function: After infusion is complete, the pump automatically switches to the smallest flow to prevent the thrombus.
9. Portable, movable infusion pump. Available for the infusion on vehicle, wheel chair, flat litter and portably.
Specifications
ASP-600A
Infusion Pump Specification
Flow rate range
0.1~1200 ml/h, Micro mode: 0.1-99.9 ml/hr in 0.1 ml increments
Infusion mode
rate mode, drip mode ( ml/h and drops/min can be switched)
Remaining time
00h:00m It depends on the setting of VTBI and flow rate
Volume to be infused (VTBI)
0 ~ 9999 ml
Volume Infused (∑)
0 ~36000 ml
Infusion accuracy
±5%
KVO rate
1 ~ 5 ml/h
Bolus rate
300 ~ 1200 ml/h
Purge
600 ml/h
Computer Interface
RS232 (optional)
Power supply
AC:100~240V,50/60Hz DC:12V ±1V
Battery recharge time
10hs recharging when machine is turned on,
3hs recharging when machine is off.
Power consumption
25VA
Classification
Class I, type CF
Water Proof Level
IP×3
Mode of operation
continuous
Dimensions
145×100×120 mm(length×width×height)
weight
≤1.4kg
Operating conditions
Temperature:5°C~40°C,relative humidity:10~95%,
air pressure:86~106kPa
Transport conditions
Temperature-20°C~+60°C,relative humidity:10~95%,
air pressure:50~106kPa
Storage conditions
Temperature-20°C~+45°C,relative humidity:10~95%,
air pressure:50~106kPa
