> Infusion Pump

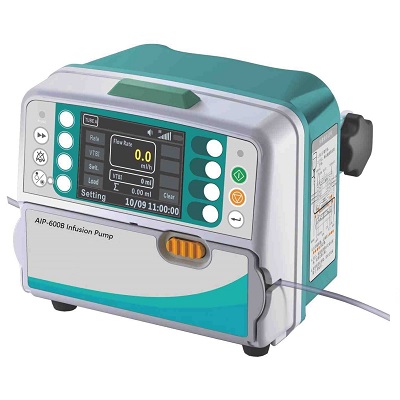

AIP-600B Infuson Pump

rate mode,drip mode
Support a wide variety brands of infusion set
multi Visual and audible alarms system
Anti-bolus system to reduce significantly bolus after occlusion sudden release
Product description: Infusion accuracy ±5% , Flow rate range 0.1-1200ml/h, Bolus rate 300-1200ml/h , KVO rate 1-5ml/h, 2000 history records storage
Inquiry

Product introduction

Features:

1. Arc design, compact & light weight
2. Peristaltic system, more accurate infusion
3. Accept various brands of infusion set
4. 3 levels of occlusion detection, 4 levels of air bubble detection, more safer infusion
5. Purge & programmable Bolus function for time saving
6. Anti-bolus function, diminish the unwanted bolus volume after removal of the occlusion
7. Versatile alarm functions to alert the device operation status
8. Optional drop sensor
9. History record

Versatile functions
2000 history records
Real time display
Adjustable buzzer volume (3 levels)
3 adjustable occlusion pressure settings
4 levels of air in line alarm adjustable
RS232 interface (optional)

User-friendly operation
Soft key design, easy to operate
Load directly the last infusion rate and volume to be infused
Battery recharge while the machine is on/ off.

Specification

Model	AIP-600B Infusion Pump
Flow rate range	0.1~1200 ml/h Micro mode: 0.1-99.9 ml/hr in 0.1 ml increments
Infusion mode	rate mode, drip mode ( ml/h and drops/min can be switched)
Volume to be infused (VTBI)	0 ~ 9999 ml
Volume Infused (∑)	0 ~36000 ml
Infusion accuracy	±5%
Applicable infusion set	Support a wide variety brands of infusion set including major manufacturers & selected local brands
KVO rate	1 ~ 5 ml/h
Bolus rate	300 ~ 1200 ml/h
Purge	600 ml/h
Air bubble detection	Ultrasound sensor detection with four levels of air in line alarm adjustable
Occlusion pressure	3 adjustable occlusion pressure settings: low, middle and high
Alarms	Visual and audible alarms: Door open, Air-In-Line, Occlusion, Infusion completion, infusion near over, Start reminder function, Low Battery, Battery depleted, malfunction etc.
Computer Interface	RS232 (optional)
History records	2000 history records
Power supply	AC:100~240V,50/60Hz DC:12V ±1V
Battery	Rechargeable lithium polymer battery,7.4V,2100mAh Can operate for more than 3 hours after fully charged at 25ml/h.
Battery recharge time	10hs recharging when machine is turned on, 3hs recharging when machine is off.
Power consumption	25VA
Classification	Class I, type CF
Water Proof Level	IP×3
Mode of operation	continuous
Dimensions	145×100×120 mm(length×width×height)
weight	≤1.4kg
Operating conditions	Temperature:5℃~40℃,relative humidity:10~95%, air pressure:86~106kPa
Transport conditions	Temperature-20℃~+60℃,relative humidity:10~95%, air pressure:50~106kPa
Storage conditions	Temperature-20℃~+45℃,relative humidity:10~95%, air pressure:50~106kPa
