> Infusion Pump

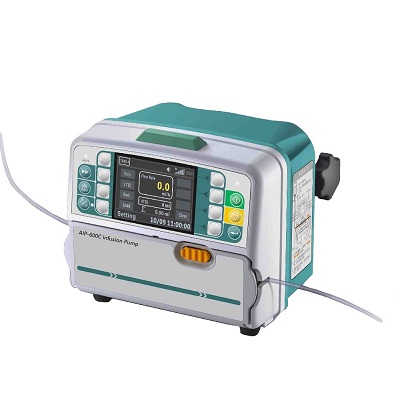

AIP-600C Infuson Pump

rate mode,drip mode,time mode,body weight mode
Support a wide variety brands of infusion set
Anti-bolus system to reduce significantly bolus after occlusion sudden release
multi Visual and audible alarms system
Product description: drug library optional, Infusion accuracy ±5% , Flow rate range 0.1-1200ml/h, Bolus rate 300-1200ml/h, KVO rate 1-5ml/h, 1500 history records storage
Inquiry

Product introduction

Features:

1. Arc design, compact & light weight
2. Peristaltic system, more accurate infusion
3. Optional drug library and intermittent infusion mode
4. 3 levels of occlusion detection, 4 levels of air bubble detection, more safer infusion
5. Purge & programmable Bolus function for time saving
6.Anti-bolus function, diminish the unwanted bolus volume after removal of the occlusion
7. Versatile alarm functions to alert the device operation status
8. Optional drop sensor
9. RS232 interface

Compact design
The compact and light weight design saves space and is beneficial during patient transfer
Large &colorful LCD display
Free flow protection
The built-in flow stop feature helps reduce the risk of accidental free flow prevent free flow
when pump door is open.
Anti-bolus function
Diminishes the volume of unwanted Bolus injected to the patient after removal of the
occlusion cause.Anti-reverse rotation detection
Panel lock
The panel lock feature helps prevent unauthorized changes of any instrument setting
Versatile functions
2000 history records,Real time display,RS232 interface (optional)
90°rotation pole clamp convenient for horizontal bar, vertical IV pole & platform use
User-friendly operation
Soft key design, easy to operate,Load directly the last infusion rate and volume limit
Adjustable buzzer volume (3 levels),Top indicator light reflects status as well as alarm case
Night mode (key tone off screen dimmed, top indicator light off) to ensure good rest of
patients removable pump body for easy cleaning
Rs232 interface
2000 event logs and alarm information can be transferred to computer for review
90°rotatable pole clamp Fixation on vertical pole or horizontal bar

Removable pump body Convenient cleaning

Mode	AIP-600C infuson pump
Mode	0.1~1200ml/h
	Micro mode: 0.1-99.9 ml/h in 0.1 ml increments
Infusion mode	Rate mode, drip mode, time mode, body weight mode
Volume to be infused (VTBI)	0~9999ml
Volume infused (∑)	0~36000ml
Infusion accuracy	±5%
KVO rate	1~5ml/h
Bolus rate	300~1200ml/h
Purge	600ml/h
Air bubble detection	ultrasound sensor detection with four levels of air in line alarm adjustable
Occlusion pressure	3 adjustable occlusion pressure settings: low, middle and high
Alarms	visual and audible alarms: Door open, Air-In-Line,
	Occlusion, Infusion completion, infusion near over,
	start reminder function, low battery, battery depleted,
	malfunction etc
Computer interface	Rs232 (optional)
History records	2000 history records
Power supply	AC:100~240V,50/60Hz DC:12V±1V
Power supply	Rechargeable lithium polymer battery, 7.4V, 1900mAh
	Can operate for more than 3 hours after fully charged at 25ml/h
Battery recharge time	10h with power on, 3h with power off
Power consumption	25VA
Classification	class I, type CF
Waterproof level	IP * 3
Mode of operation	continuous
Dimensions	145 * 100 120 mm (length width * height)
Weight	≤1.4kg
Weight	Temperature:5°~40°,relative humidity:10~95%,
Operating conditions	Atmosphere pressure: 86~106kPa
Operating conditions	Temperature:-20°~ +60°,relative humidity:10~95%,
Transport conditions	Atmosphere pressure: 50~106kPa
Transport conditions	Temperature:-20°~ +45°,relativehumidity:10~95%,
Storage conditions	Temperature:-20°~ +45°,relativehumidity:10~95%,
Storage conditions	Atmosphere pressure: 50~106kPa
