> Syringe Pump

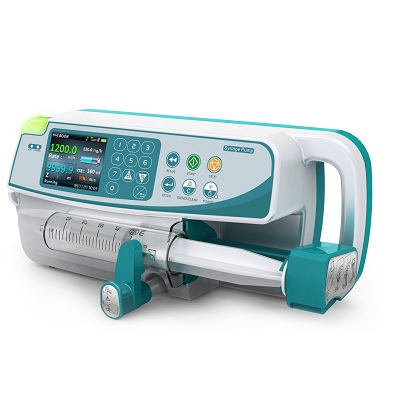

ASP-800A Syringe Pump

rate mode,time mode,dose mode
Compatible with 5ml/10ml/20ml/30ml/50ml standard syringes as open system
KVO Rate adjustable
multi audible and visible alarms system
Product description: Drug library (optional), Optional nurse call alarm, flow rate range from 0.1ml/h to 1500ml/h , 1200 history records storage, Operating for more than 6 hours after full charged at 5ml/h
Inquiry

Product introduction

Features:

1. Intelligent recognition of syringe size
2. Applicable for various brands of 5ml, 10ml,20ml,30ml,50/60ml syringes
3. Numeric & functional keypad for easy operation
4. Large and colorful LCD for detailed information
5. Multi infusion modes and programmable Bolus function
6. Various audio & visual alarms
7. History records

Feature & Functions:

Automatic syringe size-recognition

Anti-bolus function

adjustable buzzer volume

computer interface RS232

Remaining time display

Applicable for various brands of syringes

History records

3 adjustable occlusion pressure settings

Infusion near completion alarm setting

90° rotation pole clamp for horizontal bar, vertical IV pole

Specification:

Applicable syringes	Various brands of syringes: 5ml,10ml,20ml,30ml,50ml/60ml
Injection rate	5ml: 0.1 ml/h -150ml/h 10ml: 0.1 ml/h -300ml/h 20ml: 0.1 ml/h -600ml/h 30ml: 0.1 ml/h -900ml/h 50ml: 0.1 ml/h -1500ml/h
Bolus rate	5ml: 100-150ml/h 10ml: 100-300ml/h 20ml: 100-600ml/h 30ml: 100-900ml/h 50ml: 100 -1500ml/h
Purge rate	5ml: 150ml 10ml: 300ml 20ml: 600ml 30ml:900ml 50ml: 1500ml
Volume to be infused (VTBI)	0.1ml~1000ml
Injection increment	0.1ml
Accuracy	±2% (mechanical ±1%)
infusion mode	Body weight mode, Time mode, Rate mode
Time mode	Volume limit: 0.1~999.9ml Pre-set Time: 1min to 99h99min
Body weight mode	Drug limit:0.1~999.9mg, Solution limit:0.1~999.9ml, Weight: 0.1~300.0kg, Dose: 0.1~9999.9 mg/kg/h, ug/kg/min
Displayed information	Flow rate, volume limit, volume infused, syringe size, pressure value, battery capacity, unit of dosage, AC power indicator, battery charge indicator, bolus rate etc.
Occlusion pressure detection	3 adjustable occlusion pressure settings: low, middle and high
Alarm function	Infusion completion, near completion, Empty, Occlusion, start Reminder, Low battery, Syringe disengaged, incorrect installation of syringe plunger, No AC power supply, low battery, battery exhausted, malfunction etc.
Power consumption	25VA
Classification	Class I, type CF
Waterproof Level	IP×3
weight	≤2 kg
