> Vertical Sterilizer

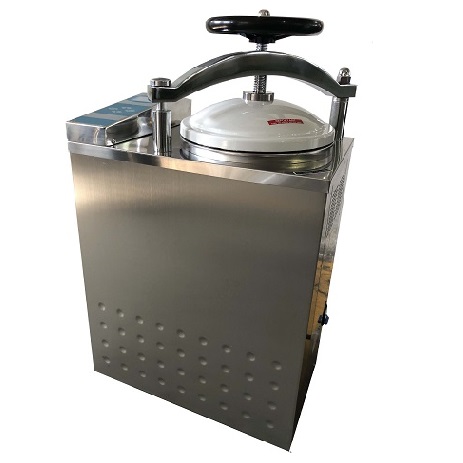

Vertical Pressure Steam Sterilizer
Product introduction
Characteristics
• Fully stainless steel structure.
• Hand wheel type of quickopen door structure.
• Door safety lock system.
• Automatically controlled by computer.
• LCD display of working status, touch type key.
• Over temperature &over pressure autoprotection.
• Steamwater inner circulation system: no steam discharge, and the environmentfor sterilizing will be clean and dry.
• Selfinflating type seal.
• Safe protection of water lacking.o
• With perfect drying function.
• Automatically shut off with beep reminding after sterilization.
• With two stainless steel sterilizing baskets
Technical Data
|
MODEL |
LS-35HG |
LS-50HG |
LS-75HG |
LS-100HG |
|
Technical Data |
||||
|
Chamber volume |
35L φ318×450mm |
50L φ340×550mm |
75L φ400×600mm |
100L φ440×650mm |
|
Working pressure |
0.22Mpa |
|||
|
Working temperature |
134℃ |
|||
|
Max. working pressure |
0.23Mpa |
|||
|
Heat average |
≤±1℃ |
|||
|
Timer range |
0-99min/0-99hour59min |
|||
|
Temperature adjust range |
0-134℃ |
|||
|
Power |
2.5KW/AC220V 50HZ |
3KW/AC220V 50HZ |
4.5KW/AC220V 50HZ |
|
|
Overall dimension(mm） |
600×410×1030 |
650×410×1140 |
690×470×1140 |
730×510×1270 |
|
Transport dimension（mm） |
730×500×1170 |
730×500×1290 |
760×550×1290 |
820×600×1380 |
|
G.W/ N.W |
96Kg/77Kg |
102Kg/83Kg |
120Kg/98Kg |
135Kg/110Kg |
