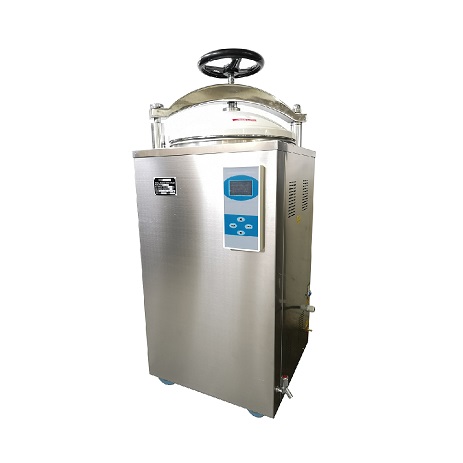

> Vertical Sterilizer
vertical pressure steam sterilizers Digital Display Automation
Product introduction
• Fully stainless steel structure.
• Auto discharge the cool air, and steam discharge automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Hand wheel type of quickopen door structure.
• Over temperature & over pressure autoprotection.
• Easy to operate, safe and reliable.
• Door safety lock system.
• With two stainless steel sterilizing baskets.
• LCD display of working status, touch type key.
• Safe protection of water lacking.
• With drying system.
• Self inflating type seal.
Technical Data
|
MODEL |
LS-35HD |
LS-50HD |
LS-75HD |
LS-100HD |
|
Technical Data |
||||
|
Chamber volume |
35L φ318×450mm |
50L φ340×550mm |
75L φ400×600mm |
100L φ440×650mm |
|
Working pressure |
0.22Mpa |
|||
|
Working temperature |
134℃ |
|||
|
Max. working pressure |
0.23Mpa |
|||
|
Heat average |
≤±1℃ |
|||
|
Timer range |
0-99min or 0-99hour59min |
|||
|
Temperature adjust range |
105-134℃ |
|||
|
Power |
2.5KW/AC220V 50HZ |
3KW/AC220V 50HZ |
4.5KW/AC220V 50HZ |
|
|
Overall dimension(mm） |
450×450×1010 |
510×470×1130 |
560×560×1120 |
540×560×1250 |
|
Transport dimension（mm） |
570×550×1150 |
590×590×1280 |
650×630×1280 |
680×630×1370 |
|
G.W/ N.W |
72Kg/56Kg |
88Kg/68Kg |
100Kg/80Kg |
110Kg/85Kg |
