> Vertical Sterilizer

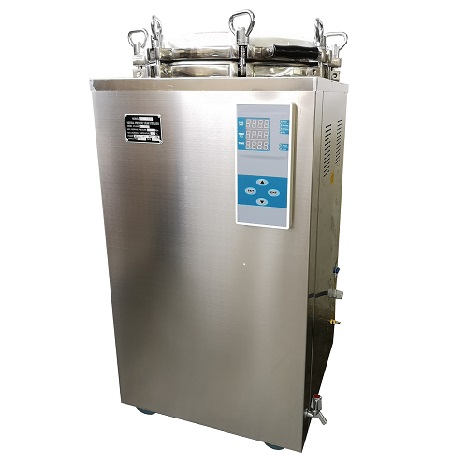

vertical pressure steam sterilizers Digital Display Automation

LED display of working status, touch type key.
Auto discharge the cool air, and steam discharging automatically after sterilization.
Automatically shut off with beep reminding after sterilization.
Easy to operate, safe and reliable.
Product description: vertical pressure steam sterilizers Digital Display Automation
Inquiry

Product introduction

Characteristics

• Fully stainless steel structure.
• LED display of working status, touch type key.
• Auto discharge the cool air, and steam discharging automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Easy to operate, safe and reliable.
• With two stainless steel sterilizing baskets.

Technical Data

MODEL	LS-35LD	LS-50LD	LS-75LD	LS-100LD	LS-120LD	LS-150LD
Technical Data
Chamber volume	35L φ318×450mm	50L φ340×550mm	75L φ400×600mm	100L φ440×650mm	120L φ480×660mm	150L φ510×740mm
Working pressure	0.22Mpa
Working temperature	134℃
Max.working pressure	0.23Mpa
Heat average	≤±1℃
Timer range	0-99min/0-99hour59min
Temperature adjust range	105-134℃
Power	2.5KW/AC220V 50HZ	3KW/AC220V 50HZ	4.5KW/AC220V 50HZ			7KW/AC220V 50HZ
Overall dimension(mm）	480×460×850	520×520×980	560×560×980	590×590×1080		600×640×1140	670×690×1130
Transport dimension（mm）	570×550×970	590×590×1110	650×630×1150	680×650×1220		730×730×1270	760×760×1270
G.W/N.W	56Kg/42Kg	68Kg/50Kg	90Kg/70Kg	105Kg/85Kg		125Kg/100Kg	135Kg/110Kg
