> Table Type Steam Sterilizer

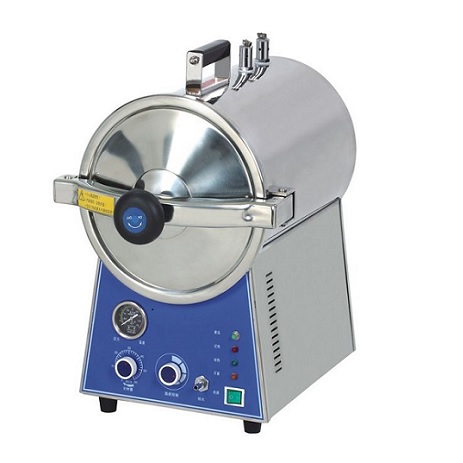

Table top steam sterilizer
Product introduction
• Sterilizing course: Automatic sterilization controlled by computer, easy to operate.
• Maximum temperature: 134℃, suitable for 4-6 minutes flash sterilizing.
• Safe protection of water lacking.
• With over heat and over pressure protection.
• After sterilization it will automatically cut the power and then alarm.
• Fully stainless steel structure.
Technical Data
|
MODEL |
TM-T16J |
TM-T24J |
|
Technical Data |
||
|
Stenilizing chamber volume |
16L φ250×360mm |
24L φ270×410mm |
|
Working pressure |
0.22Mpa |
|
|
Working temperature |
134℃ |
|
|
Temperature adjust range |
105-134℃ |
|
|
Timer range |
0-60min |
|
|
Heat average |
≤±1℃ |
|
|
Power |
1.5KW/AC220V.50Hz |
|
|
Sterilizing plate |
340×200×30(3piece) |
|
|
Dimension（mm） |
545×328×423 |
560×350×500 |
|
Exerior package dimension（mm） |
605×390×480 |
620×410×570 |
|
G.W/N.W |
17/15Kg |
20/18Kg |
